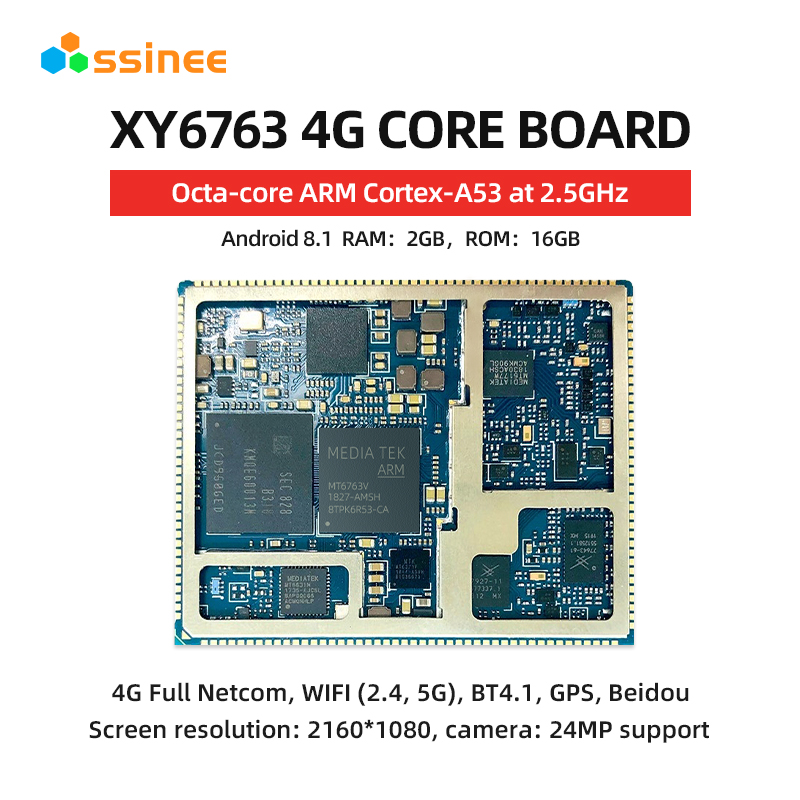

XY6763 core board (MTK6763 platform)

CPU: MediaTek MT6763T
Architecture: ARM Cortex-A53 octa-core 2.5GHz
OS : Andriod 8.1
Memory : 4GB+64GB/6GB+128GB
Network support : 2G/3G/4G full network access
Wireless connectivity : WiFi/Bluetooth/GPS/Beidou

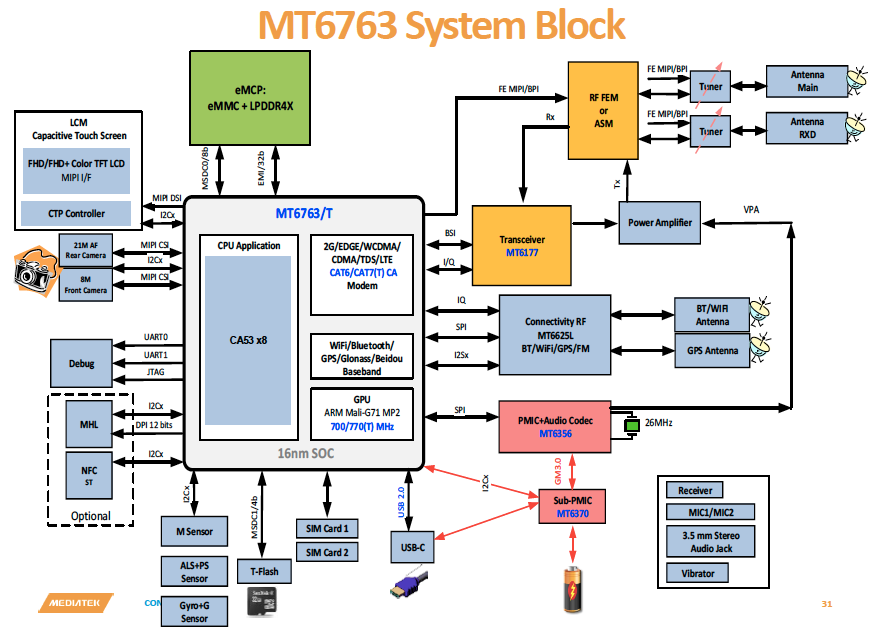

Product introduction

MT6763 core board is a high performance 4G smart module based on MediaTek MT6763 platform that can run Android OS, supporting LTE-FDD/LTE-TDD/WCDMA/TD-SCDMA/EVDO/CDMA/GSM and other standards; supporting WiFi 802.11a/b/g/n, BT4.0LE proximity Wireless communication, support GPS/GLONASS/BeiDou multiple system satellite positioning; support a variety of voice and audio codecs, internal integration of ARM Mali G71 MP2 770MHz high-performance graphics engine, can smoothly play 4K video; with multiple audio, video input and output interfaces and rich GPIO interface.

Network band

TypeNetwork band
LTE-FDD B1/B2/B3/B5/B7/B8/B20(B17)
LTE-TDD B34/B38/B39/B40/B41
WCDMAB1/B2/B5/B8
TD-SCDMAB34/B39
EVDO/CDMABC0
GSMB2/B3/B5/B8
DL CCAB1/B3/B7/B38/B39/B40/B41
DL NCCAB3/B40/B41
Inter CAB1+B3 B3+B5 B1+B5 B39+B41
UL CCAB3/B38/B39/B40/B41
WiFi 802.11a/b/g/n/ac2400~2483.5MHz/5725~5850MHz/5925MHz
BTv2.1+EDR,3.0+HS,v4.1+HS2400~2483.5MHz
GNSSGPS/GLONASS/北斗

Main performance parameters

PerformanceDescription
Application Processors 16nm octa-core ARM@Cortex-A53 processor
Single-core up to 2.5GHz, four 2.3GHz + four 1.8GHz
512kB Level 2 cache
Modem ProcessorMIPS32 processor
ARM maximum frequency 864MHz
256KB L2
Electricity supplyVBAT supply voltage range: 3.5V~4.35V
Typical supply voltage: 4.2V
SMSText with PDU mode
Point-to-Point MO and MT
SMS Broadcast
SMS Storage: Default SIM
AT commandNot supported
LCM interface4 groups of MIPI_DSI, each supporting up to 1.2Gbps rate;
Support up to 2160*1080 60fps (4 groups of MIPI_DSI);
24bit color depth
Camera interface4 groups of MIPI_CSI, each supporting up to 2.5Gbps rate for 2 cameras;
Rear camera using 4 groups of MIPI_CSI, supporting up to 24M@30fps
Front camera uses 4 groups of MIPI_CSI, supporting up to 24M@30fps
Front and rear cameras can support dual recording, picture-in-picture function
Audio InterfaceAudio input:
3 groups of analog microphone inputs
1 as headset MIC input, the other two are normal call noise reduction MIC
Audio output:
Class AB stereo headphone output
Class AB differential earpiece output
Class AB differential output to external audio amplifier
USB InterfaceSupport USB2.0 high-speed mode, data transfer rate up to 480Mbps
For software debugging and software upgrade, etc.
Support USB OTG
USIM card interface2 groups of USIM card interface
Support USIM/SIM card: 1.8V and 3V
Support dual card dual standby
SDIO interfaceSupport SD/SDHC/MS/MSPRO/MMC/SDIO2.0 or 3.0 4bit SDIO
Hot-swappable
I2C interface4 groups of I2C, maximum rate up to 400K, when using I2C DMA the maximum speed can reach 3.4Mbps, for TP, Camera, Sensor and other peripherals
ADC interfaceTwo channels for general purpose ADC,Input range=0.05~1.45V
Antenna InterfaceMAIN antenna, DRX antenna, GNSS antenna, WIFI/BT antenna interface
Physical CharacteristicsDimension: 40.5±0.15×50.5±0.15×2.8±0.2 mm
Interface: LCC
Warpage: <0.3mm
Weight: 10.9g
Temperature rangeNormal operating temperature: -20°C to +70°C
Extreme operating temperature: -25°C and +80°C 1)
Storage temperature: -40°C ~ +85°C
Software Upgradevia USB
RoHSRoHS compliant
