XY6580 core board (MTK6580 platform)

CPU: MediaTek MT6580
Architecture: ARM Cortex-A7 Quad-core 1.3GHz
OS : Andriod 8.1
Memory : 512M+4GB/1GB+8GB/2GB+16GB
Network Support : 2G/3G
Wireless connectivity : WiFi/Bluetooth/GPS

Product introduction

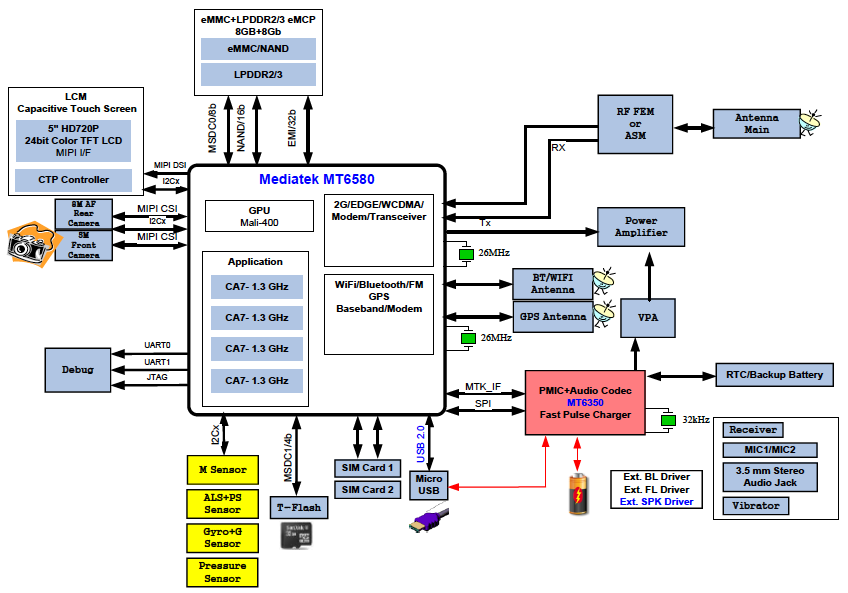

MT6580 core board is a high performance, 3G smart module based on MediaTek MT6580 platform that can run Android OS, supporting WCDMA/GSM/EDGE/GPRS and other standards; supporting WiFi 802.11b/g/n, BT V2.1+EDR, V3.0+HS, V4.0 LE proximity wireless communication, supporting GPS Satellite positioning; support a variety of voice and audio codecs, internal integration of ARM Mali 400 500MHz high-performance graphics engine, support 1080p 30fps H.264 decoding, support 1080p 30fps MPEG-4 encoding; support up to 8MP camera input, with multiple audio and video input and output interfaces and rich GPIO interface.

Network band

TypeNetwork band
WiFi 802.11b/g/n2400-2483.5MHz/5725-5850MHz
BT4.0 LE2400-2483.5MHz

Main performance parameters

Application Processors4-core ARM Cortex-A7 processor up to 1.3GHz 512kB Level 2 cache
Electricity supplyVBAT supply voltage range: 3.5V~4.3V Typical supply voltage: 4V
SMSText with PDU mode point-to-point MO and MTSMS broadcast SMS storage: default SIM
LCM interface3 groups of MIPI_DSI, each group supports up to 1.0Gbps rate; up to 720*1280 (3 groups of MIPI_DSI); 24bit color depth
Camera interface4 groups of MIPI_CSI, each group supports up to 1.5Gbps rate, can support 2 cameras; rear camera using 4 groups of MIPI_CSI, supports up to 8MP pixels front camera using 2 groups of MIPI_CSI, supports up to 5MP pixels front and rear camera can support dual recording, picture-in-picture function
Audio InterfaceAudio input: 3 groups of analog microphone input 1 way as a headset MIC input, the other two are normal call noise reduction MIC audio output: AB class stereo headphone output AB class differential earpiece output AB / D class differential speaker amplifier output 0.8W
USB InterfaceSupport USB2.0 high-speed mode, data transfer rate up to 480Mbps for software debugging and software upgrades, etc. Support USB OTG
USIM card interface2 groups of USIM/SIM card interface support: 1.8V and 3V support dual SIM card dual standby
SDIO interfaceSupport SD2.0; 4bit SDIO; SD/MMC card support hot-swap
I2C interface3 groups of I2C, maximum rate up to 400K, when using I2C DMA the maximum speed can reach 3.4Mbps, for TP, Camera, Sensor and other peripherals
ADC interface2-way for general purpose ADC
Antenna InterfaceWCDMA antenna, GNSS antenna, WIFI/BT antenna interface
Physical Characteristics Size: 34 × 34 × 2.8 mm Interface: LCC warpage: <0.3mm Weight: 8.5g
Temperature rangeNormal working temperature: -20°C ~ +70°C Extreme working temperature: -25°C and +80°C 1) Storage temperature: -40°C ~ +85°C
Software Upgradevia USB
RoHSRoHS compliant
