XY6582 core module (MTK6582 platform)

CPU: MediaTek MT6582
Architecture: ARM Cortex-A7 Quad-core 1.3GHz
OS : Andriod 4.4/5.0
Memory : 1GB+8GB/2GB+16GB
Network Support : GSM/WCDMA
Wireless connectivity : WiFi/Bluetooth/GPS

Product introduction

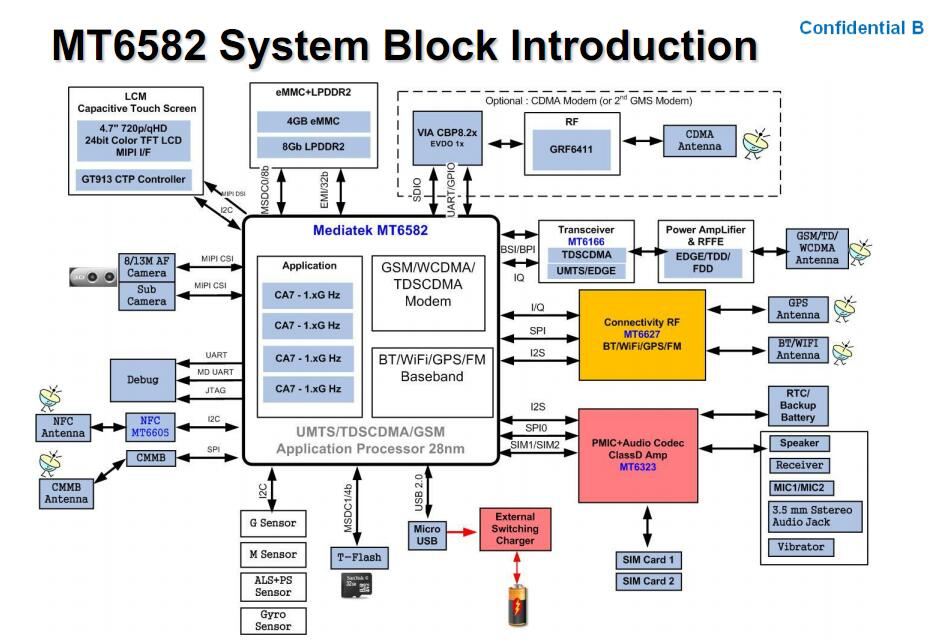

The MT6582 core board is a high-performance, 3G smart module based on MediaTek MT6582 platform that can run Android operating system, supporting WCDMA/GSM standard; supporting WiFi 802.11b/g/n, BT3.0 proximity wireless communication, supporting GPS standard satellite positioning; supporting a variety of voice and audio codecs, internal integration Mali- 400MP high-performance graphics engine, can smoothly play 1080P video; with multiple audio, video input and output interfaces and rich GPIO interface.

Network band

TypeNetwork band
WCDMAB1/B8 or B2/B5
WiFi 802.11b/g/n2400-2483.5MHz
BT3.0 2400-2483.5MHz

Main performance parameters

Application Processors4-core ARM Cortex-A7 processor clocked up to 1.3GHz
Modem ProcessorARM@Cortex-R4 + DSPMaximum frequency of 491.5MHz for ARM and 240MHz for DSP
Electricity supplyVBAT supply voltage range: 3.6V~4.3V Typical supply voltage: 4V
SMSText with PDU mode point-to-point MO and MTSMS broadcast SMS storage: default SIM
LCM interface4 groups of MIPI_DSI, each group supports up to 1.0Gbps rate; up to 1280*720 60fps (4 groups of MIPI_DSI); 24bit color depth
Camera interface4 groups of MIPI_CSI, each group supports up to 1.5Gbps rate for 2 cameras; rear camera uses 4 groups of MIPI_CSI, supports up to 8MP pixels front camera uses 4 groups of MIPI_CSI, supports up to 5MP pixels
Audio InterfaceAudio input: 3 groups of analog microphone input 1 way as a headset MIC input, the other two are normal call noise reduction MIC audio output: AB class stereo headphone output AB class differential earpiece output AB / D class differential speaker amplifier output 0.8W
USB interfaceSupport USB2.0 high-speed mode, data transfer rate of up to 480Mbps for software debugging and software upgrades, etc. Support USB OTG (requires additional 5V power supply chip)
USIM card interface2 groups of USIM/SIM card interface support: 1.8V and 3V support dual SIM card dual standby
SDIO interfaceSupport SD2.0; 4bit SDIO; SD/MMC card support hot-swap
I2C interface4 groups of I2C, maximum rate up to 400K, when using I2C DMA the maximum speed can reach 3.4Mbps, for TP, Camera, Sensor and other peripherals
ADC interface1 way for general purpose ADC
Antenna InterfaceWCDMA antenna, GNSS antenna, WIFI/BT antenna interface
Physical Characteristics Size: 42±0.15×48±0.15×2.8±0.2 mm Interface: LCC Warpage: <0.3mm Weight: 10.9g
Temperature rangeNormal working temperature: -20°C ~ +70°C Extreme working temperature: -25°C and +80°C 1) Storage temperature: -40°C ~ +85°C
Software Upgradevia USB
RoHSRoHS compliant
