CPU: MediaTek MT6765 Architecture: ARM Cortex-A53 octa-core 2.3GHz OS : Andriod 9.0 Memory : 4GB+64GB/6GB+128GB Network Support : 2G/3G/4G Full Network Wireless connectivity : WiFi/Bluetooth/GPS/Beidou
Product introduction

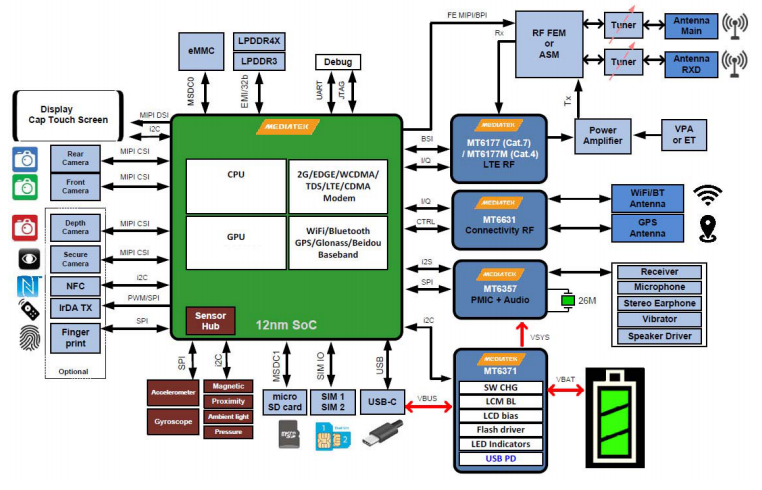

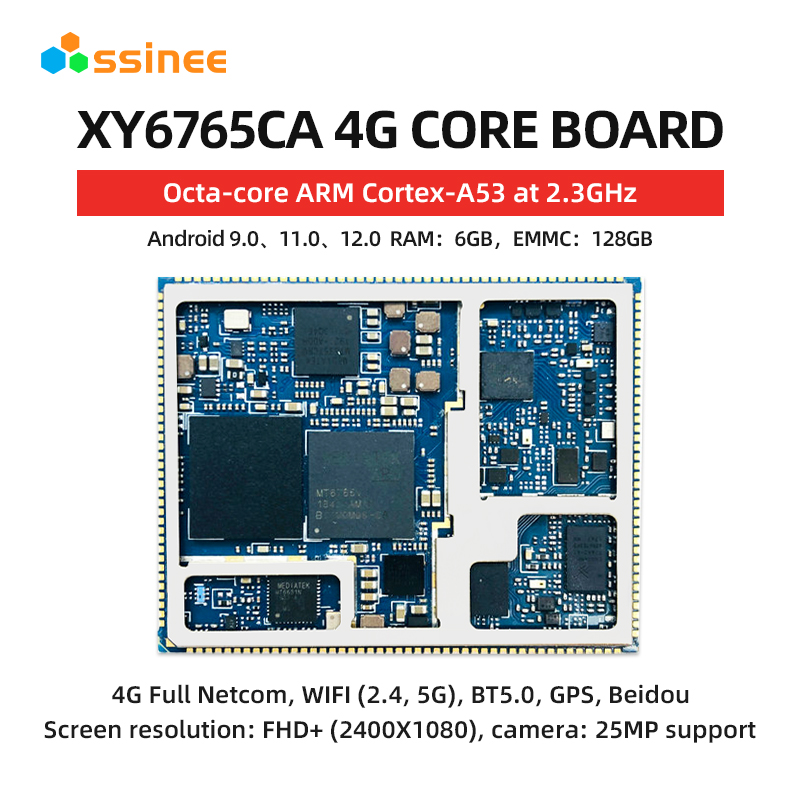

XY6765 is a MTK platform-based, industrial-grade high-performance 4G smart module that can run Android 9.0 operating system, the three modules are hardware compatible with each other, supporting LTE-FDD (CAT-7)/LTE-TDD (CAT-7)/WCDMA/TD-SCDMA/EVDO/CDMA/GSM and other systems; support WiFi 802.11 a/b/g/n/ac, BT v2.1+EDR, 3.0+HS,v4.1+HS, GPS/GLONASS/BeiDou satellite positioning; multiple audio and video input/output interfaces and rich GPIO interfaces.
MIPS32 processor ARM maximum frequency 864MHz256KB L2
Electricity supply
VBAT supply voltage range: 3.5V~4.35V Typical supply voltage: 4.2V
SMS
Text with PDU mode point-to-point MO and MTSMS broadcast SMS storage: default SIM
AT命令
Not supported
LCM interface
4 groups of MIPI_DSI, each group supports up to 1.2Gbps rate; up to 2400*1080 FHD+ (4 groups of MIPI_DSI); 24bit color depth
Camera interface
4 groups of MIPI_CSI, each group supports up to 2.5Gbps rate, can support 2 cameras; rear camera using 4 groups of MIPI_CSI, support up to 24M@30fps front camera using 4 groups of MIPI_CSI, support up to 24M@30fps front and rear cameras can support dual recording, picture-in-picture function
Audio Interface
Audio input: 3 groups of analog microphone input 1 way as a headset MIC input, the other two are normal call noise reduction MIC audio output: AB class stereo headphone output AB class differential earpiece output AB class differential output to external audio amplifier
USB interface
Support USB2.0 high-speed mode, data transfer rate up to 480Mbps for software debugging and software upgrades, etc. Support USB OTG
USIM card interface
2 groups of USIM/SIM card interface support: 1.8V and 3V support dual SIM card dual standby
SDIO interface
Support SD/SDHC/MS/MSPRO/MMC/SDIO2.0 or 3.0 4bit SDIO support hot-swap
I2C interface
4 groups of I2C, maximum rate up to 400K, when using I2C DMA the maximum speed can reach 3.4Mbps, for TP, Camera, Sensor and other peripherals
ADC interface
Two channels for general purpose ADC,Input range=0.05~1.45V
Antenna Interface
MAIN antenna, DRX antenna, GNSS antenna, WIFI/BT antenna interface
Physical Characteristics
Size: 40.5±0.15×50.5±0.15×2.8±0.2 mm Interface: LCC Warpage: <0.3mm Weight: 10.9g
Temperature range
Normal working temperature: -20°C ~ +70°C Extreme working temperature: -25°C and +80°C 1) Storage temperature: -40°C ~ +85°C
